Moisture presents a great danger to museum objects. Wood is particularly sensitive to this: even minimal moisture fluctuations cause the material to expand and contract repeatedly. If the internal forces become excessive, there is even a risk of cracking. Museum objects that suffer from this include, for example, oak panel paintings from before the 17^th century or the doors of 17^th century furniture such as cabinets.

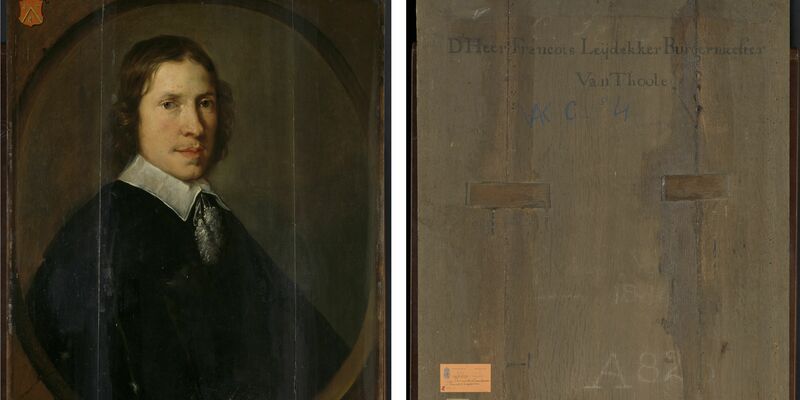

In the case of panel paintings, any damage is often the result of differences in moisture permeability. The layers of paint on the front of the panel only allow moisture to slowly pass through. As a result, most of the moisture exchange occurs at the back of the panel. This uneven distribution of moisture causes the panel to bend. If the internal tension becomes too great, the paint layer or even the wood may crack. In the case of cabinet doors, the fiber orientation of the boards is the most critical factor. If the boards are glued together in different directions, the influence of moisture may cause one board to expand or contract more than the other. This creates tensile stress, which can eventually lead to cracks.

More moisture fluctuation seems feasible

Arends, who will obtain a doctorate in Applied Physics and Mechanical Engineering on September 12th, looked at moisture transport through wood from a physical point of view. His research seems to indicate that a fluctuation of twenty percent (plus or minus 10 %) should also be acceptable. “However, this data still needs to be verified experimentally in order to be applicable in new museum guidelines in the future,” says Arends. For his PhD, he developed a mathematical model that can predict the bending of panel paintings for every fluctuation in humidity, thickness of wood and thickness of paint layers. To test his model, Arends even examined a real door from 1885, originating from the Rijksmuseum building, in an MRI scanner. “The speed of the moisture fluctuations appears to be particularly decisive when it comes to bending. Thin panels are the most vulnerable,” explains Arends.

Luimes, who will obtain a doctorate from the Department of the Built Environment on September 17th, looked at mechanical forces on wood. Her results show that older wood is not as strong as young wood. “A wooden cupboard door will age over a period of several centuries and therefore slowly become less resistant to fluctuations in humidity,” says Luimes. She submitted 13^th, 17^th and 21^st century pieces of wood to a so-called fracture test, in which the force on the wood is increased until it breaks. Luimes then validated the findings using computer simulations. Her computer model can predict, based on the way that the boards are glued together and how old the wood is, whether a cupboard door is at risk of damage at a certain permitted moisture fluctuation. “For many 17^th century cabinets, the climate system could be less strict, but it is important to determine this limit separately for each object,” concludes Luimes.
